BM0-J6

Bus interface Modbus RTU

Bus interface BACnet MS/TP

X-AIR-ZMAS

X-AIRCONTROL Modbus zone module

Control component with dynamic transducer with Modbus RTU interface and BACnet MS/TP interface for X-AIRCONTROL

Compact unit for VAV terminal unit TVR, TVJ, TVT, TZ-Silenzio, TA-Silenzio, TVZ, TVA, TVM

Controller, dynamic differential pressure transducer and actuator in one casing
Use in ventilation and air conditioning systems, only with clean air
Simple plug connection RJ12 for supply voltage and communication
Compatible with X-AIRCONTROL zone module Modbus
Volume flow rates q_vmin and q_vmax are pre-set in the factory and saved in the controller as changed parameters
High data transparency through standardised bus communication Modbus RTU or BACnet MS/TP
Setpoint value settings, override controls, parameter adjustment via bus communication or X-AIRCONTROL
Service access for manual adjustment devices and PC configuration software

General information

Application

All-in-one control engineering devices for VAV terminal units
Dynamic differential pressure transducer, electronic controller, and actuator are fitted together in one casing
Suitable for different control tasks depending on the specification of the setpoint value
The room temperature controller, central BMS, air quality controller or similar units control the variable volume flow control by specifying the setpoint values via a communication interface.
Suitable for room control X-AIRCONTROL zone module Modbus
Simple connection for supply voltage and communication with common RJ12 connection socket
Override controls for activating q_vmin, q_vmax, shut-off, OPEN position via Modbus register, BACnet objects or X-AIRCONTROL possible
Volume flow rate actual value is available as a network data point
Damper blade position is available as a network data point
Standard filtration in comfort air conditioning systems allows for use of the controller in the supply air without additional dust protection

With heavy dust levels in the room

Install appropriate exhaust air filters upstream, as a partial volume flow is routed through the transducer for volume flow rate measurement

If the air is contaminated with dust, fluff or sticky components

Use an attachment assembly with static differential pressure transducer

Control strategy

The volume flow controller works independently of the duct pressure
Differential pressure fluctuations do not result in permanent volume flow rate changes
To prevent the control from becoming unstable, a dead band is allowed within which the damper blade does not move
Flow rate range parameterised in the controller at the factory (q_vmin: minimum volume flow rate, q_vmax: maximum volume flow rate)
Operating parameters are specified via the order code and parameterised in the factory

Operating modes

Modbus RTU: Setpoint value setting via X-AIRCONTROL or external software
BACnet MS/TP: Setpoint value setting via external software

Interface

Communication interface

Modbus RTU, RS485 (factory preset)
BACnet MS/TP (can be activated on site with ZTH-EU)
Data points see bus lists

Parts and characteristics

Transducer for dynamic measurement principle
Overload protection
Connection socket RJ12
Service interface for connection of service tools
Axis clamping device
Indicator lights for detecting the operating mode
Addressing key for setting user addresses in bus mode
Supply and communication not galvanically isolated

Operating parameters

q_vmin = 0 – 100 % of the nominal volume flow rate q_vnom adjustable
q_vmax = 20 – 100 % of the nominal volume flow rate q_vnom adjustable

Construction

LMV-D3-M/B-J6 TR with connection socket RJ12
NMV-D3-M/B-J6 TR with connection socket RJ12

Type LMV-D3-M/B-J6 TR for volume flow controller

TVR, TZ-Silenzio, TA-Silenzio, TVZ, TVA, TVM

Type NMV-D3-M/B-J6 TR for volume flow controller

TVJ
TVT up to 100 × 300 or 800 × 400 mm

Commissioning

Due to the volume flow rates set in the factory, always ensure that the control units are only installed in the specified locations
Commissioning steps for network integration required
Operating parameters can be adjusted by others (service tool ZTH-EU)

Useful additions

Adjustment device type ZTH (order code AT-VAV-B)

Information technique

Function, Specification text, Order code

Principle of operation

① Effective pressure transducer

② Actuator

③ Volume flow controller

④ Setpoint value signal

A closed control circuit for regulation of the volume flow rate, i.e. measuring - comparing - adjusting, is characteristic of air terminal units.
The volume flow rate is measured by measuring a differential pressure (effective pressure). This is done via a differential pressure sensor. An integrated differential pressure transducer converts the effective pressure into a voltage signal. The volume flow rate actual value is hence available as a voltage signal. The factory setting is such that 10 V DC always corresponds to the nominal volume flow rate (q_vnom).
The volume flow rate setpoint value is specified by a higher-level controller (e.g. room temperature controller, air quality controller, central BMS). Variable volume flow control results in a value between q_vmin and q_vmax. It is possible to override the room temperature control, e.g. by a complete shut-off of the duct.
The controller compares the volume flow rate setpoint value to the actual value and controls the integral actuator accordingly.

Category

Compact controller for volume flow rate
Regulation of a constant or variable volume flow rate setpoint value
Electronic controller for connecting a controlled variable and tapping an actual value for integration in a Modbus RTU or BACnet MS/TP-based central building management system
The actual value relates to the nominal volume flow rate such that commissioning and subsequent adjustment are simplified

Application

Dynamic transmitter for clean air in ventilation and air conditioning systems

Supply voltage

24 V AC / DC

Actuator

Integrated; slow running (running time approx. 120 – 150 s for 90°)

Installation orientation

Either direction

Interface/signalling

Modbus RTU (RS-485)
BACnet MS/TP
Supply and communication not galvanically isolated
Termination switchable

Connection

Connection socket RJ12, suitable for TROX X-AIRCONTROL zone module X-AIR-ZMO-MOD

Interface information

Modbus Register
BACnet objects
Volume flow rate setpoint and actual value, damper blade position, error status, etc. read and write

Special functions

Activation V_min, V_max, closed, open via Modbus register or BACnet object

Optional activatable operating modes

Open loop: actuators with air flow measurement

Parameter setting

Parameters specific to VAV terminal unit parameterised at the factory
Operating values V_min, V_max and interface type parameterised in the factory
Subsequent adjustment via Modbus-BACnet register access or via optional tools: adjustment device, PC software (wired in each case) possible

Factory condition

Electronic controller factory-mounted on the terminal unit
Factory parameter settings
Functional test under air; certified with sticker

TVR

–

100

BM0-J6

qvmin

–

qvmax

m³/h

1 Type
TVR VAV terminal unit

2 Acoustic cladding
No entry required: None
D With acoustic cladding

3 Material
Galvanised sheet steel (Standard construction)
P1 Powder-coated RAL 7001, silver grey
A2 Stainless steel construction

5 Nominal size [mm]
100, 125, 160, 200, 250

6 Accessories
No entry required: None
D2 Double lip seal both sides
G2 Matching flanges both sides

7 Attachments (control components)
BM0-J6 Compact controller of dynamic transducer, Modbus RTU, BACnet MS/TP, RJ12 connection socket

8 Operating mode
V Variable (setpoint value range)

10 Operating values for factory setting
Volume flow rates in m³/h or l/
sq_vconst (only with operating mode F)
q_vmin (only with operating mode V, M)
q_vmax (only with operating mode V, M)

11 Volume flow rate unit
m³/h
l/s

Order example: TVT/200×100/D2/BM0-J6/V/200-800 m³/h

Acoustic cladding	Without
Material	Galvanised sheet steel
Nominal size	200 × 100 mm
Accessories	Double lip seal both sides
Attachment	Compact controller Modbus, dynamic transducer, Modbus RTU, BACnet MS/TP, RJ12 connection socket
Operating mode	V variable operation
Volume flow rate	200 – 800 m³/h

Variants

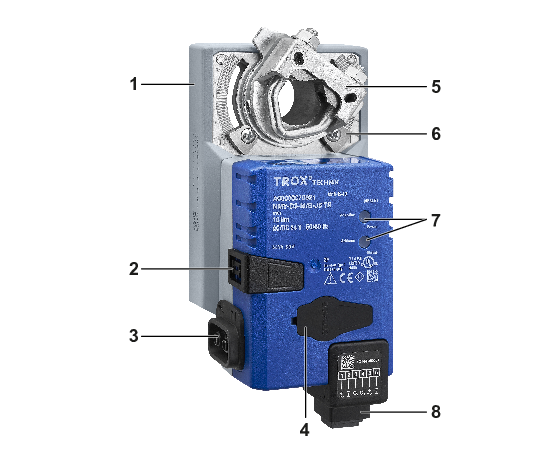

Compact controller BM0-J6, type LMV-D3-M/B-J6 TR, 5 Nm

① VAV-Compact
② Gear release button
③ Connections for differential pressure sensor
④ Service socket
⑤ Axis clamping device
⑥ Rotation stop
⑦ Indicator light/Addressing key
⑧ Connection socket RJ12

Technical data, Product details

Compact controllers for VAV terminal units

VAV terminal units	Type of installation component	Part number
TVR, TZ-Silenzio, TA-Silenzio, TVZ, TVA	LMV-D3-M/B-J6 TR	A00000070622
TVJ, TVT	NMV-D3-M/B-J6 TR	A00000070621
TVM	2 x LMV-D3-M/B-J6 TR	A00000070622

Compact controller BM0-J6, LMV-D3-M/B-J6 TR

Supply voltage (AC)	24 V AC, 50/60 Hz
Supply voltage (DC)	24 V DC
Power rating (AC)	Max. 4 VA (max. 8 A @ 5 ms)
Power rating (DC)	Max. 2 W
Functional range	AC 19.2 – 28.8 V/DC 21.6 – 28.8 V
Bus connection	Modbus RTU**, BACnet MS/TP,
Adjustable communication parameters Modbus RTU	Baud rate: 9600, 19200, 38400, 76800, 115200; Address: 1,2.3 – 247; Parity: 1-8-N-2**, 1-8-N-1, 1-8-E-1, 1-8-O-1; Number of nodes: max. 32 (without repeater) Terminal resistor: 120 Ω;
Adjustable communication parameters BACnet MS/TP	Baud rate: 9600, 19200, 38400,76800, 115200; Address: 0,1,2.3 – 127; Number of nodes: max. 32 (without repeater) Terminal resistor: 120 Ω;
Addressing	Required on-site: e.g. adjustment device ZTH-EU or external software
Setpoint value signal input	Via Modbus register access e.g. via X-AIRCONTROL zone module or BACnet objects
IEC protection class	III (protective extra-low voltage)
EC conformity	EMC to 2014/30/EU

**Factory setting

Compact controller BM0-J6, NMV-D3-M/B-J6 TR

Supply voltage (AC)	24 V AC, 50/60 Hz
Supply voltage (DC)	24 V DC
Power rating (AC)	Max. 5 VA (max. 8 A @ 5 ms)
Power rating (DC)	Max. 3 W
Functional range	AC 19.2 – 28.8 V/DC 21.6 – 28.8 V
Bus connection	Modbus RTU**, BACnet MS/TP,
Adjustable communication parameters Modbus RTU	Baud rate: 9600, 19200, 38400, 76800, 115200; Address: 1,2.3 – 247; Parity: 1-8-N-2,** 1-8-N-1, 1-8-E-1, 1-8-O-1; Number of nodes: max. 32 (without repeater) Terminal resistor: 120 Ω;
Adjustable communication parameters BACnet MS/TP	Baud rate: 9600, 19200, 38400, 76800, 115200; Address: 0,1,2.3 – 127; Number of nodes: max. 32 (without repeater) Terminal resistor: 120 Ω;
Addressing	Required on-site: e.g. adjustment device ZTH-EU or external software
Setpoint value signal input	Via Modbus register access e.g. via X-AIRCONTROL zone module or BACnet objects
IEC protection class	III (protective extra-low voltage)
EC conformity	EMC to 2014/30/EU

**Factory setting

Communication interface Modbus RTU

Number	Register Address	Description	Range Enumeration	Unit	Scaling	Access
1		Setpoint value Setpoint value between q_vmin and q_vmax	0 – 10000 Factory setting: 0	%	0.01	[R / W]
2	1	Override control Overwrites the setpoint value with override control	0: None 1: OPEN 2: CLOSED 3: q_vmin 4: q_vmid 5: q_vmax Factory setting: None (0)	-	-	[R / W]
3	2	Command triggering - Release of functions for service and test purposes. Reset resets the controller and clears internal error memory such as register 105.	0: None 1: Adaptation 2: Test 3: Synchronisation 4: Reset Factory setting: None (0)	-	-	[R / W]
4	3	Type of actuator	0: Actuator not connected/not known 1: Actuator air/water with/without safety function 2: Volume flow controller VAV/EPIV 3: Fire damper 4: Energy valve 5: Pressure-independent control valve	-	-	[R]
5	4	Current damper blade position (%)	0 – 10000	%	0.01	[R]
6	5	Damper blade angle (°)	0 – max.	°	1	[R]
7	6	Relative volume flow rate related to q_vnom;	0 – 10000	%	0.01	[R]
8	7	Absolute volume flow rate related to q_vnom;	0 – q_vnom;	m³/h	1	[R]
10	9	-	-	-	-	[–]
11	10	Absolute volume flow rate in selected volume flow unit acc. to register 15 (Lowword)	-	UnitSel	0.0001	[R]
12	11	Absolute volume flow rate in selected volume flow unit acc. to register 15 (Highword)	-	UnitSel	0.0001	[R]
13	12	Analogue setpoint value (%). Shows the setpoint value in % with control input signal.	0 – 10000	%	0.01	[R]
100	99	Bus terminal resistor. Indicates whether the terminating resistor (120 Ω) is active or deactivated.	0: inactive 1: active Factory setting: inactive (0)	-	-	[R / W]
101	100	Serial number, part 1	-	-	-	[R]
102	101	Serial number, part 2	-	-	-	[R]
103	102	Serial number, part 3	-	-	-	[R]
104	103	Firmware version. Example: 302, version 3.02	-	-	-	[R]
105	104	Malfunctions and service information	Bit1: Mechanical travel exceeded Bit2: Actuator cannot be moved (e.g. mechanical overload) Bit8: Internal activity (e.g. test run, adaptation) Bit9: Gear release active Bit10: Bus monitoring triggered	-	-	[R]
106	105	Setting work areas q_vmin Requirements q_vminvmax q_vmin in the area 0 – 100 % q_vnom;	0 – q_vmax Standard: 0	%	0.001	[R / W]
107	106	Setting work areas q_vmax Requirements q_vmaxvmin Vmax in the area 20 - 100 % q_vnom;	q_vmin–10000 Standard: 10000	%	0.01	[R / W]
109	108	Bus timeout monitoring	0: Last setpoint value 1: Fast close — CLOSED 2: Quick open — OPEN 3: Center position Factory setting: Last setpoint value (0)	-	-	[R / W]
110	109	Time until release bus timeout monitoring	0 - 3600 seconds Factory setting: 0 (bus timeout monitoring deactivated)	s	1	[R / W]
111	110	Nominal volume flow rate q_vnom; (m³/h)	-	m³/h	1	[R]
112	111	-	-	-	-	[–]
113	112	Nominal volume flow rate q_vnom; in selected volume flow unit acc. to Reg 118 (LowWord)	-	UnitSel	0.001	[R]
114	113	Nominal volume flow rate q_vnom; in selected volume flow unit acc. to 118 (HighWord)	-	UnitSel	0.001	[R]
115	114	-	-	-	-	[–]
116	115	-	-	-	-	[–]
117	116	Control mode	0: Position control (open loop) 1: Volume flow control	-	-	[R / W]
118	117	Unit selection	0: m³/s 1: m³/h 2: l/s 3: l/min 4: l/h 5: gpm 6: cfm Standard m³/h (1)	-	-	[R / W]
119	118	Setpoint value setting	0: Analogue (0 – 10 V, 2 – 10 V) 1: Bus (Modbus, BACnet,) Factory setting: Bus (1)	-	-	[R / W]

Communication interface BACnet MS/TP

Object Name	Object Type	Description	Values	COV Increment	Access
Device	Device [Inst.No]		0 – 4194302 Default: 1	-	W
RelPos	AI[1]	Damper blade position in % Overridden = 1 (gear latch pressed)	0 – 100	0.01 – 100 Standard: 1	R
AbsPos	AI[2]	Absolute position in ° Overridden = 1 (gear latch pressed)	0 - max. rotation angle	0.01 – 65353 Factory setting: 1	R
SpAnalogue	AI[6]	Analogue setpoint value in % Shows the analogue setpoint value in %, if setpoint value setting is in (SpSource[122]) Analogue (1) If setpoint value setting (SpSource[122]) Bus (2) = then Out_Of_Service is TRUE	0 – 100	0.01 – 100 Standard: 1	R
RelFlow	AI[10]	Relative volume flow rate in %	0 – 100	0.01 – 100 Standard: 1	R
AbsFlow_UnitSel	AI[19]	Absolute volume flow rate of selected unit acc. to [121]	0 – q_vnom;	0.01 – 1000 Standard: 1	R
SpRel	AO[1]	Relative setpoint value in % Setpoint value between q_vmin AV[97] and q_vmax [98] (Only with bus control input signal) If SpSource (MV[122]) = 1 (Analogue), then Out_of_Service = TRUE	0 – 100 Factory setting: 0	0.01 – 100 Factory setting: 1	C
Min.	AV[97]	Minimum setpoint value in % (q_vmin) Requirement: q_vminvmax q_vmin in the area 0 - 100 & q_vnom;	0 – qv_max Factory setting: 0	0.01 – 100 Factory setting: 1	W
Max.	AV[98]	Minimum setpoint value in % (q_vmax) Requirement: q_vmax > q_vmin q_vmax in the area 20 - 100 % of q_vnom;	qv_min – 100 Standard: 100	0.01 – 100 Standard: 1	W
Vnom_UnitSel	AV[104]	Current volume flow rate according to selected volume flow unit (UnitSelFlow MV[121])	-	0.01 – 100 Standard: 1	R
Bus Watchdog	AV[130]	Time until the release bus timeout monitoring in s If Present_Value ≠ 0, then write access to Present_Value is monitored by AO[1] and MO[1]. Writing to Present_Value AO[1] MO[1] resets the timer. In hybrid mode, only write accesses to MO[1] are monitored.	0 – 3600 s Factory setting: 0 (bus timeout monitoring deactivated)	0.01 – 1000 Standard: 1	W
BusTermination	BI[99]	Terminal resistor Shows whether the terminal resistor (120 Ω) has been activated via the service tools.	Inactive_Text: Switch not active Active_Text: Switch active	-	R
SummaryStatus	BI[101]	Condensed status Summary status (MI[106], MI[110])	Inactive_Text: no error Active_Text: Error	-	R
InternalActivity	MI[100]	Status Activity	1: None 2: Test 3: Adaptation	-	R
StatusActuator	MI[106]	Status of the actuator	1: OK 2: Actuator cannot be moved 3: Gear release active 4: Mechanical travel exceeded	-	R
StatusDevice	MO[110]	Status of the device Shows the general status of the device	1: OK 2: Bus timeout monitoring activated	-	R
Override	MO[1]	Override control Overwrites the setpoint value (SpRel AO[1]) with a forced command.	1: None 2: OPEN 3: CLOSED 4: q_vmin 5: q_vmid 6: q_vmax Factory setting: None (1)	-	C
Command	MV[120]	Release test functions	1: None 2: Adaptation 3: Test 4: Reset Factory setting: None (1)	-	W
UnitSelFlow	MV[121]	Unit selection The selected unit is indicated in AI[19] and AV[104].	1: m³/s 2: m³/h 3: l/s 4: l/min 5: l/h 6: gpm 7: cfm Factory setting: m³/h (2)	-	W
ControlMode	MV[122]	Setpoint value setting	1: Analogue (0 – 10 V, 2 – 10 V) 2: Bus (Modbus, BACnet, MP-Bus) Factory setting: Bus (2)	-	W
ControlMode	MV[223]	ControlMode	1: Position control (OpenLoop) 2: Volume flow control	-	W

Téléchargements

Information produit

Product data sheet control components BM0-J6

BM0-J6_PD_2022_02_21_DE_en Product data sheet 23 Mo pdf

Certificats

Konformitätserklärung / Declaration of conformity BM0-J6-LMV-D3-M_B-J6.1

BM0-J6-LMV-D3-M_B-J6.1-TR_CE_01_2020_07_30_de_en_fr Certificate 41 ko pdf
Konformitätserklärung / Declaration of conformity BM0-J6-NMV-D3-M_B-J6.1

BM0-J6-NMV-D3-M_B-J6.1-TR_CE_01_2020_07_30_de_en_fr Certificate 41 ko pdf

En cliquant sur ce bouton, vous nous autorisez à vous offrir une expérience de navigation et d'achat de qualité sur notre site web. Ces cookies comprennent ceux qui sont nécessaires au fonctionnement du site et au contrôle de nos services et applications, ainsi que ceux qui sont utilisés uniquement à des fins statistiques, pour des paramètres de commodité ou pour afficher un contenu personnalisé. Vous pouvez décider quelles catégories vous souhaitez autoriser et vous pouvez ajuster les paramètres d'utilisation des données en fonction de vos propres besoinsS. Veuillez noter que, selon les paramètres que vous avez sélectionnés, toutes les fonctionnalités de la page peuvent ne pas être disponibles. Vous pouvez modifier votre sélection à tout moment.

NÉCESSAIRE D’UN POINT DE VUE TECHNIQUE

Ces cookies sont nécessaires au bon fonctionnement de notre site Internet et ne peuvent pas être désactivés. En règle générale, ces cookies ne sont définis qu'en réponse aux actions que vous avez entreprises, comme la définition de vos préférences de confidentialité ou la préparation de votre panier. De plus, des fonctionnalités ou supports liés à la sécurité via un webchat dédié sont intégrés, y compris tous les cookies de session de TROX définis une fois que vous vous êtes connecté en tant que client. Vous pouvez configurer votre navigateur pour bloquer ces cookies ou vous en informer. En conséquence, cependant, certaines zones du site Web peuvent ne pas fonctionner comme prévu.

STATISTIQUES ET ANALYSE DE SITE WEB

Ces cookies permettent de collecter des données à des fins de statistiques et d'analyses afin que TROX puisse mesurer les performances des sites Web visités, identifier les problèmes techniques et trouver des points de départ pour l'optimisation. Ils peuvent être définis par nous ou par des tiers dont nous utilisons les services sur nos sites. Les utilisateurs aident également à identifier, par exemple, quelles pages sont utilisées le plus fréquemment ou rarement ou comment les gens naviguent entre les pages Web. Toutes les informations utilisées par des tiers sont agrégées et anonymisées.

BM0-J6

Control component with dynamic transducer with Modbus RTU interface and BACnet MS/TP interface for X-AIRCONTROL

General information

Information technique

Function, Specification text, Order code

Variants

Technical data, Product details

Téléchargements

Information produit

Product data sheet control components BM0-J6

Certificats

Konformitätserklärung / Declaration of conformity BM0-J6-LMV-D3-M_B-J6.1

Konformitätserklärung / Declaration of conformity BM0-J6-NMV-D3-M_B-J6.1

NÉCESSAIRE D’UN POINT DE VUE TECHNIQUE

STATISTIQUES ET ANALYSE DE SITE WEB

COMMODITÉ ET PERSONNALISATION

POUR LA MEILLEURE EXPÉRIENCE TROX POSSIBLE
