TR2X

VENTILATION GRILLES, MADE OF STAINLESS STEEL, WITH ADJUSTABLE BLADES

The high-quality ventilation grille blends perfectly into any room.

  • Suitable for comfort and industrial areas for walls, sills, circular or rectangular air ducts
  • Are mostly resistant to aggressive environmental influences and cleaning agents
  • Retain their good appearance for years, do not require surface protection and do not become statically charged
  • Single piece available in the nominal sizes 225 × 75 to 825 × 325 mm
  • Adjustable blades for air direction control
  • Uniform air distribution, easy to realise thanks to various attachments
  • Simple mounting options for quick and easy installation

General information

Application

  • Ventilation grille Type TR2X as air diffuser (supply and extract air) for comfort zones and industrial zones
  • Directed supply air flow for mixed flow ventilation
  • Blades are adjustable to meet different local requirements
  • For constant and variable volume flows
  • For supply air to room air temperature differences from –12 to +4 K
  • For installation in walls, sills, circular or rectangular air ducts


Special characteristics

  • Individually adjustable blades

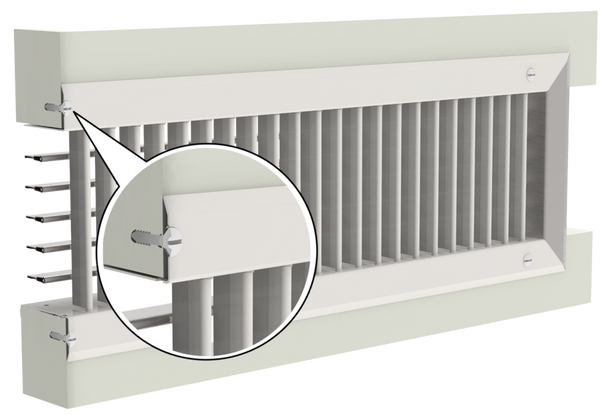

  • Countersunk hole, concealed screw fixing with or without installation subframe, unperforated front border without factory-fitted mounting option
  • Filter element for extract grille optional


Nominal sizes

Width [mm]

225 - 825

Height [mm]

75 - 325

Grille for installation into circular ducts (R/RA versions)


Width [mm]

225 - 825

Height [mm]
75, 125, 225

Variants

  • Horizontal, vertical or vertical and horizontal blade arrangements
  • Linear run section consisting of end and centre sections that are assembled on site
  • Grille for wall, sill and duct installation or for pipe installation
  • Concealed screw fixing without installation subframe (do not use in aggressive air)
  • Countersunk hole in front border
  • Non-perforated front border, without factory-fitted mounting option


Attachments

Volume flow rate balancing on site

  • AG: Damper element with opposed action blades
  • AS: Hit and miss damper made of aluminium (parallel slide damper)
  • SAS: slanted hit and miss damper made of aluminium

Parts and characteristics

  • Front border made of flanged profile
  • Individually adjustable, horizontal and / or vertical blades
  • Perimeter seal, factory-fitted
  • Vertical centre mullion for nominal widths over 625 mm


Accessories

  • Filter element for extract grille


Construction features

  • Front frame profile 25 x 40 mm with bevelled edge to cover the installation opening
  • Profiled blade, manually adjustable
  • Fixed connection between attachment and ventilation grille via screw connection

Suitable air duct diameters

  • Ø100 - 2000 mm

Note: The possible air duct diameters are reduced depending on the grille height.

Material

  • Stainless steel front border type 1.4404
  • Blades made of stainless steel type 1.4401
  • Small parts made of stainless steel type 1.4301
  • PES filter
  • Foam seal


Surfaces

  • Front border and blades chemically stained
  • Front border and blades electropolished
  • Front border and blades powder-coated in RAL 9010 pure white, GU50
  • Front border and blades powder-coated according to RAL CLASSIC colour palette, GU70


Maintenance

  • Low maintenance as construction and materials are not subject to wear and tear
  • Inspection and cleaning according to VDI 6022

Standards and guidelines

  • Sound power level of the air-regenerated noise measured according to EN ISO 5135
  • Filter class ISO Coarse 45% according to ISO 16890

Information technique

  • Function
  • TECHNICAL DATA
  • SPECIFICATION TEXT
  • ORDER CODE

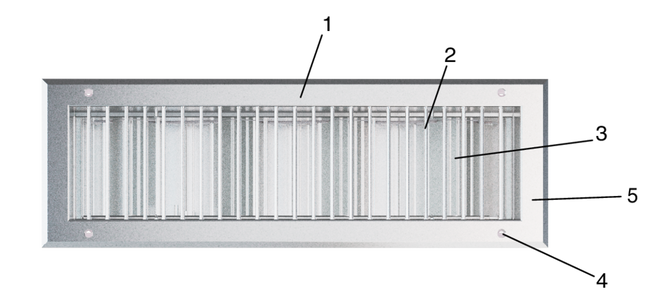

Schematic illustration of ventilation grille TR2X-V-AG
Schematic illustration of ventilation grille TR2X-V-AG
1 Front border
2 Vertical blades
3 Attachment damper element, opposed action blades
4 Countersunk hole
5 Stainless steel surface
Schematic illustration of ventilation grille TR2X-V-AG

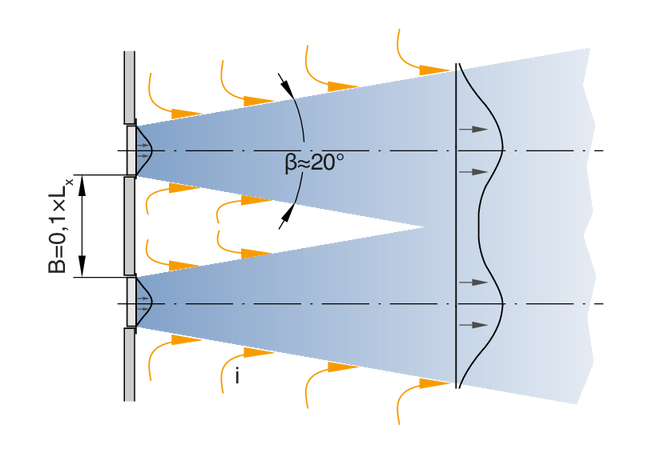

Grille installation with ceiling effect (side view)
Grille installation with ceiling effect (top view)
Grille installation without ceiling effect (side view)
Grille installation without ceiling effect (top view)
Ventilation grilles are air terminal devices for the supply air and extract air of ventilation and air conditioning systems. They direct the supply air into the room. Ventilation grilles with adjustable blades allow for adapting the discharge direction to the local conditions. The result is a mixed flow ventilation in comfort zones and industrial zones, with good overall room ventilation. Due to induction, the air velocity of the supply air flow decreases with increasing distance from the ventilation grille. The distance at which the airflow velocity reaches a certain defined value, e.g. 0.35 m/s, is called throw distance. The supply air flow from wall
grilles that are arranged close to the ceiling achieves a greater throw distance than a comparable free jet (without ceiling influence), due to the ceiling effect. Single grilles, groups of grilles and linear run sections all achieve different throw distances. In cooling mode, it is necessary to consider the jet deflection towards the occupied zone, which increases as the supply air to room air temperature difference increases and the discharge velocity decreases. In heating mode, the supply air jet is deflected towards the ceiling. This has no negative effect on the airflow velocity in the occupied zone, but it may affect the overall ventilation of the room.

Nominal sizes

225 × 75 - 825 × 325

Minimum volume flow rate

11 - 270 l/s or 40 - 972 m³/h

Maximum volume flow rate, with LWA max. 40 dB(A)

without attachments

53 - 1111 l/s or 189 - 4000 m³/h

Supply air temperature

-12 to +4 K

Volume flow rate indication for single grilles (undivided construction) for supply air.

The individual sizing of the ventilation and acoustic data for the different variants is possible with our free design programme Easy Product Finder.


Geometric free area (blade arrangement VH, HV) A [m2]

H/B

225

325

425

525

625

825

75

0.008

0.012

0.015

0.019

0.023

0.031

125

0.015

0.023

0.031

0.039

0.046

0.062

225

0.031

0.046

0.062

0.077

0.092

0.123

325

–

0.069

0.092

0.115

0.139

0.185


Geometric free area (blade arrangement V) A [m2]

H/B

225

325

425

525

625

825

75

0.008

0.012

0.016

0.02

0.024

0.032

125

0.016

0.024

0.032

0.04

0.048

0.063

225

0.032

0.048

0.063

0.079

0.095

0.127

325

–

0.071

0.095

0.119

0.143

0.19


Geometric free area (blade arrangement H) A [m2]

H/B

225

325

425

525

625

825

75

0.008

0.012

0.016

0.021

0.025

0.033

125

0.016

0.025

0.033

0.041

0.049

0.066

225

0.033

0.049

0.066

0.082

0.098

0.131

325

–

0.074

0.098

0.123

0.148

0.197


Effective air inflow area supply air (blade arrangement VH, HV) A [m2]

H/B

225

325

425

525

625

825

75

0.007

0.011

0.015

0.019

0.022

0.03

125

0.015

0.022

0.03

0.037

0.045

0.06

225

0.03

0.045

0.06

0.075

0.09

0.12

325

–

0.067

0.09

0.112

0.135

0.18


Effective air inflow area supply air (blade arrangement V) A [m2]

H/B

225

325

425

525

625

825

75

0.008

0.012

0.015

0.019

0.023

0.031

125

0.015

0.023

0.031

0.039

0.046

0.062

225

0.031

0.046

0.062

0.077

0.093

0.124

325

–

0.07

0.093

0.116

0.139

0.185


Effective air inflow area supply air (blade arrangement H) A [m2]

H/B

225

325

425

525

625

825

75

0.008

0.012

0.016

0.02

0.024

0.032

125

0.016

0.024

0.032

0.04

0.048

0.064

225

0.032

0.048

0.064

0.08

0.096

0.128

325

–

0.072

0.096

0.12

0.144

0.192

Effective air inflow area return air (blade arrangement V) Aeff [m2]

H/B

225

325

425

525

625

825

75

0.006

0.009

0.011

0.014

0.017

0.023

125

0.011

0.017

0.023

0.028

0.034

0.045

225

0.023

0.034

0.045

0.057

0.068

0.091

H/B

225

325

425

525

625

825

325

–

0.051

0.068

0.085

0.102

0.136


Effective air inflow area extract air (blade arrangement H) A [m2]

H/B

225

325

425

525

625

825

75

0.006

0.009

0.012

0.015

0.018

0.023

125

0.012

0.018

0.023

0.029

0.035

0.047

225

0.023

0.035

0.047

0.059

0.07

0.094

325

–

0.053

0.07

0.088

0.106

0.141

This specification text describes the general properties of the product. Texts for variants can be generated with our Easy Product
Finder design programme.

Specification text

Ventilation grille as supply air or extract air diffuser for the ventilation of rooms in ventilation and air conditioning systems. Consisting of a front border with bevelled edge. Installation preferably in circular or square air ducts, and for wall mounting. Ready-to-install component, consisting of a front border and individually adjustable, vertical and/or horizontal blades. Customised aerodynamic and acoustic design with web configurator.


Material
  • Stainless steel front border type 1.4404
  • Blades made of stainless steel type 1.4401
  • Small parts made of stainless steel type 1.4301
  • PES filter
  • Foam seal


Surfaces
  • Front border and blades chemically stained
  • Front border and blades electropolished
  • Front border and blades powder-coated in RAL 9010 pure white, GU50
  • Front border and blades powder-coated according to RAL CLASSIC colour palette, GU70


Nominal sizes
Width [mm]
225 - 825
Height [mm]
75 - 325
Grille for installation into circular ducts (R/RA versions)
Width [mm]
225 - 825
Height [mm]
75, 125, 225


Technical data
Design-specific


Standards and guidelines
  • Sound power level of the air-regenerated noise measured according to EN ISO 5135
  • Filter class ISO Coarse 45% according to ISO 16890


Variants
  • Horizontal, vertical or vertical and horizontal blade arrangements
  • Linear run section consisting of end and centre sections that are assembled on site
  • Grille for wall, sill and duct installation or for pipe installation
  • Concealed screw fixing without installation subframe (do not use in aggressive air)
  • Countersunk hole in front border
  • Non-perforated front border, without factory-fitted mounting option


Accessories
  • Filter element for extract grille


Equivalence criteria
  • Adjustable air pattern
  • Grille available in various colours
  • Optional air direction control via factory-set blades
  • Optional various attachments for restricting and balancing the grilles
  • Ventilation data and acoustic data verified by laboratory measurements
  • Dust and scratch protection thanks to individual packaging
  • Various mounting options for common application areas
  • Stainless steel materials with refined surface


Manufacturer of the product
TROX GmbH


Serie
TR2X
TR2X––R–
–H/525 x 125/AG/EF/NO/
/S9
|||||||||||
123456 7891011
1 Type
TR2X Stainless steel ventilation grille

2 Variant

No entry: single grille
E End section
M Middle section

3 Construction

No entry: installation into walls, sills or ducts
R Installation into circular ducts (large duct diameters)
RA Installation into circular ducts with small Ø and additional bend (small duct diameters)

4 Front frame

No entry: profile 25 × 40 mm with bevelled edge


5 Blade arrangement

V Vertical front blade
H Horizontal front blade
VH Vertical front blade, horizontal air direction control
HV Horizontal front blade, vertical rear blade

6 Nominal size [mm]
Specify width × heigh


7 Attachment

Suitable for supply air and extract air
No entry: without attachment (front grille only)
AG Damper blade, opposed action blades
AS Hit and miss damper (parallel slide damper)

Only suitable for supply air
SAS Slanted hit and miss damper

8 Filter
Suitable for extract air
No entry required: without filter element
EF with filter element (not with SAS attachment )


9 Fixing
No entry required: countersunk holes in the front frame
SP Concealed screw fixing, for installation without installation subframe
NO No factory-fitted mounting option (unperforated front frame)

10 Air discharge
No entry required: air direction control 0°
44 Air direction control 44°
84 Air direction control 84°
110 Air direction control 110°
140 Air direction control 140
GEG Opposed


11 Surface
P0 Powder-coated, RAL 9010 (pure white), GU 50
P1 Powder-coated, specify RAL CLASSIC colour, gloss level
PS powder-coated, specify NCS colour and gloss level
S8 Electropolished
S9 Chemically pickled



Order example: TR2X-R-H/525x125/AG/EF/NO/S8

TypeTR2X – Stainless steel ventilation grille
VariantSingle grille
ConstructionInstallation into circular ducts (large duct diameters)
Front frame Profile 25 x 40 mm with bevelled edge
Blade arrangement Horizontal front blade
Nominal size [mm]Width 525, height 125
AttachmentDamper element, opposed action blades
Filterwith filter element
FixingNo factory-fitted fixing option
Instalation subframe With installation subframe
Air dischargeAir direction control 0°
SurfaceElectropolished

Téléchargements

Information produit

  • Product data sheet TR2X

    TR2X_PD_2024_08_27_DE_en Product data sheet  16 Mo pdf
production {"X-Frame-Options"=>"SAMEORIGIN", "X-XSS-Protection"=>"1; mode=block", "X-Content-Type-Options"=>"nosniff", "X-Download-Options"=>"noopen", "X-Permitted-Cross-Domain-Policies"=>"none", "Referrer-Policy"=>"strict-origin-when-cross-origin", "Content-Security-Policy"=>"frame-ancestors 'self' https://api.scrivito.com https://punchoutcommerce.com https://www.trox.de https://trox-extern.com https://psp40.onventis.com https://psp22.onventis.com https://trox4u.troxgroup.com", "Strict-Transport-Security"=>"max-age=31536000; includeSubDomains", "Content-Type"=>"text/html; charset=utf-8"}

Partager la page

Recommander cette page

Vous avez la possibilité de recommander cette page en partageant le lien.

Les champs marqués d'une étoile (*) sont obligatoires.

Contact

Merci pour votre message !

Votre recommandation a été envoyée et sera bientôt reçue par le destinataire.

Contact

Nous sommes à votre disposition

Veuillez spécifier le sujet de votre requête et vos coordonnées.
Tel.: +33 1 56 70 54 54

Pièce jointe (max. 10MB)
Votre message
Votre message à

Les champs marqués d'une étoile (*) sont obligatoires.

Contact

Merci pour votre message !

Votre message a été reçu par le Centre de Service et est en cours de traitement.
Notre département des demandes de service vous contactera sous peu.
Si vous avez des questions d'ordre général sur nos produits et services, vous pouvez également nous contacter à l'adresse suivante:
Tél .: +49 (0) 2845 2020 | Fax: +49 (0) 2845 202265

Contact

Nous sommes à votre disposition

Veuillez spécifier le sujet de votre requête et vos coordonnées.
Tel.: +33 1 56 70 54 54

Pièce jointe (max. 10MB)
Votre message
Votre message à

Les champs marqués d'une étoile (*) sont obligatoires.

Contact

Merci pour votre message !

Votre message a été reçu par le Centre de Service et est en cours de traitement.
Notre département des demandes de service vous contactera sous peu.
Si vous avez des questions d'ordre général sur nos produits et services, vous pouvez également nous contacter à l'adresse suivante:
Tél .: +49 (0) 2845 2020 | Fax: +49 (0) 2845 202265

TROX Logo
En cliquant sur ce bouton, vous nous autorisez à vous offrir une expérience de navigation et d'achat de qualité sur notre site web. Ces cookies comprennent ceux qui sont nécessaires au fonctionnement du site et au contrôle de nos services et applications, ainsi que ceux qui sont utilisés uniquement à des fins statistiques, pour des paramètres de commodité ou pour afficher un contenu personnalisé. Vous pouvez décider quelles catégories vous souhaitez autoriser et vous pouvez ajuster les paramètres d'utilisation des données en fonction de vos propres besoinsS. Veuillez noter que, selon les paramètres que vous avez sélectionnés, toutes les fonctionnalités de la page peuvent ne pas être disponibles. Vous pouvez modifier votre sélection à tout moment.
Cookies réglages
